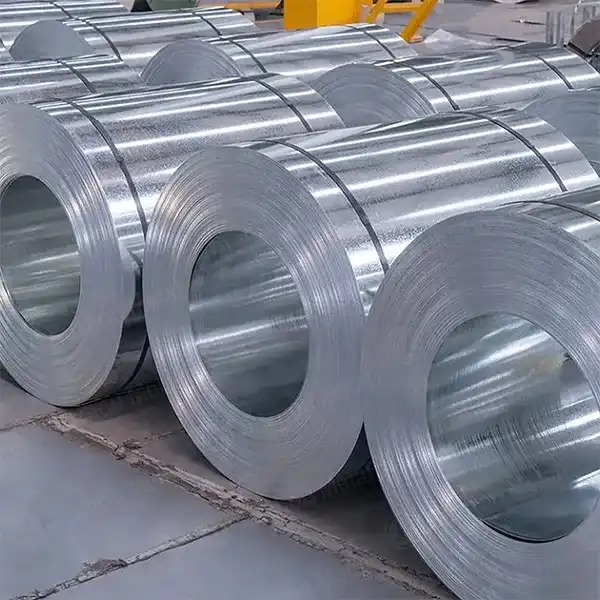

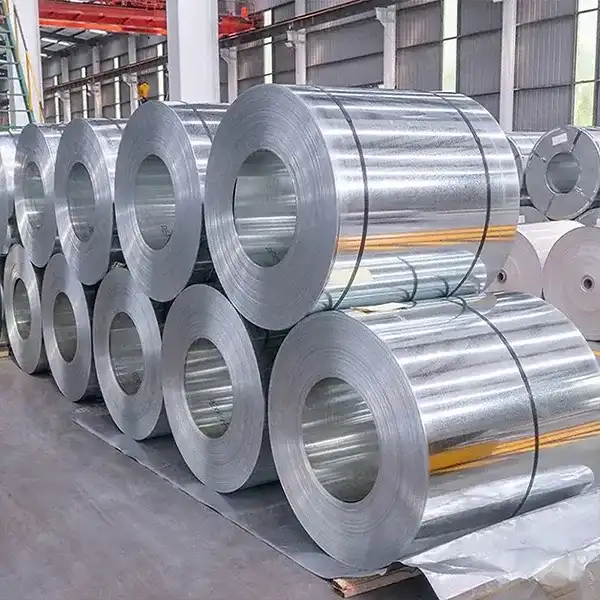

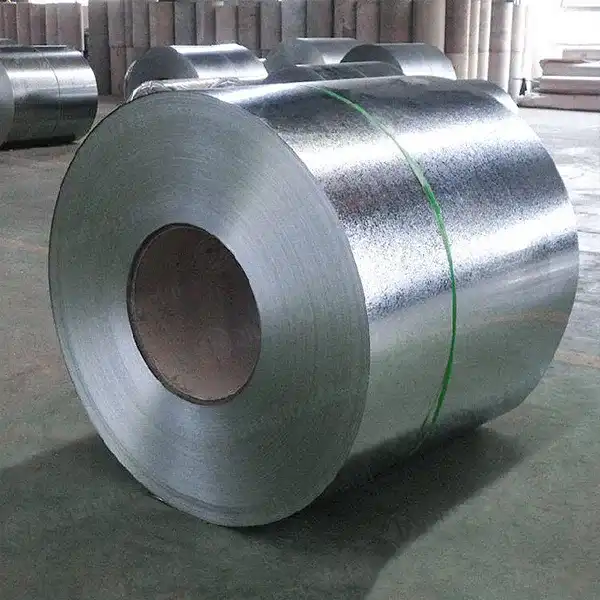

Hot Dip Galvanized Steel Coil

Hot dip galvanizing is to make the molten metal react with the iron substrate to produce an alloy layer, so that the substrate and the coating are combined. Hot galvanizing is to pickle the steel and iron parts first. In order to remove the iron oxide on the surface of the steel and iron parts, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank, and then sent into the hot dip plating tank. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Categories: Steel Coil, Galvanized Steel Coil

E-Mail：admin@generalsteels.com

WhatsApp：+8618865111877

Product Description

Hot Dip Galvanized Steel Coil

Hot-dip galvanizing is one of the effective means to delay the environmental corrosion of iron and steel materials, it is the surface of the cleaned, activated iron and steel products immersed in molten zinc, through the reaction and diffusion between iron and zinc, in the iron and steel products surface plating good adhesion of zinc alloy coating. Compared with other metal protection methods, the hot-dip galvanizing process has advantages in the protection characteristics of the combination of physical barrier and electrochemical protection of the coating, the bonding strength of the coating and the substrate, the compactness, durability, maintenance-free and economy of the coating, and its adaptability to the shape and size of the product. At present, hot-dip galvanized products mainly include steel plates, steel strips, steel wires, steel pipes, etc., of which hot-dip galvanized steel plates account for a large proportion.

Product Parameters

Product Name	Hot Dip Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Length	508mm/610mm, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1 SGCD2	0.12 0.10	0.50 0.50	0.60 0.45	0.040 0.030	0.030 0.030	0.025 0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400 SGC440	0.25 0.25	0.50 0.50	1.70 2.00	0.200 0.200	0.035 0.035	0.150 0.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Material Comparison

Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570

Scope of Application

For a long time, hot-dip galvanizing process has been favored by people because of its low plating cost, excellent protection characteristics and beautiful appearance. It is widely used in automobile, construction, household appliances, chemical industry, machinery, petroleum, metallurgy, light industry, transportation, electric power, aviation and marine engineering and other fields.

PACKING AND DELIVERY

Packing and delivery

The company mainly deals in seamless steel pipes, welded steel pipes, galvanized steel coils, round steel, steel plates, color-coated plates, stainless steel plates, aluminum coils, angle steels, H-shaped steels, special-shaped steel bars, etc. We provide one-stop service from raw materials to finished products, with complete product specifications. We have 30 years of production experience and after years of development, we have a strong production capacity with a monthly output of 50,000 tons.

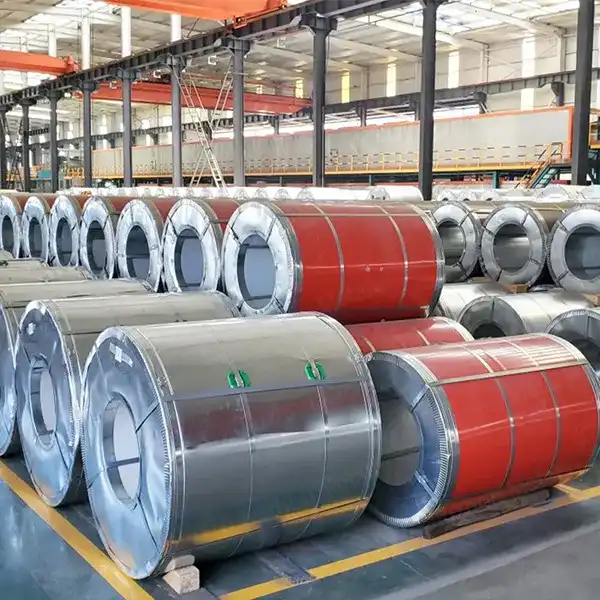

FACTORY APPEARANCE

We are one-stop supplier from raw materials to finished products, our products are available in a variety of specifications and with a history of 30 years production experience, after years of development, We have a strong production capacity, with a monthly output of 50,000 tons, ranking among the top five in the industry.

CUSTOMER VISIT

APPLICATION FIELD

FAQ

Q1: What are the certifications for your products?

A We have ISO 9001, MTC, and third-party inspections available such as SGS, BV, etc.

Q2: Do you provide custom-made products service?

A Yes. If you have your own design, we can produce according to your specification and drawing.

Q3: What are your terms of payment?

A For Payment ≤ 1,000 USD: 100% in advance. For Payment ≥ 1,000 USD: 30% T/T in advance, balance before shipment or based on BL copy; LC at sight is acceptable.

Q4: What about product price information?

A Prices vary according to the periodic changes of raw material costs and market conditions.

Q5: What ports of shipment are available?

A Normally we ship from Shanghai, Tianjin, Qingdao, Ningbo. Other ports can be specified according to your needs.

Q6: It's my first time to import steel products — can you help me?

A Sure. We have a reliable forwarding/agent team to arrange shipment and guide the whole process together with you.
